Description
Application:

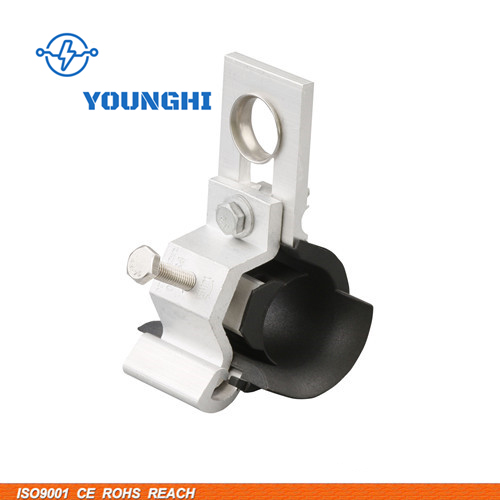

The PTC suspension clamp is designed for the installation and suspension of four core LV-ABC cables to poles or walls.For straight lines and angles up to 90.
Feature:
1) No tools are needed for installation, equipped with a wing nut.
2) The clamp is made of corrosion resistant aluminium alloy and weather resistant material.
3) No loose parts.
4) Standard: EN 50483-2
Item No. |
Cross section(mm2) |
Breaking load |
PTC-1 |
2X25-4X120 |
40KN |
PTC-2 |
4X(25-120) |
15KN |
