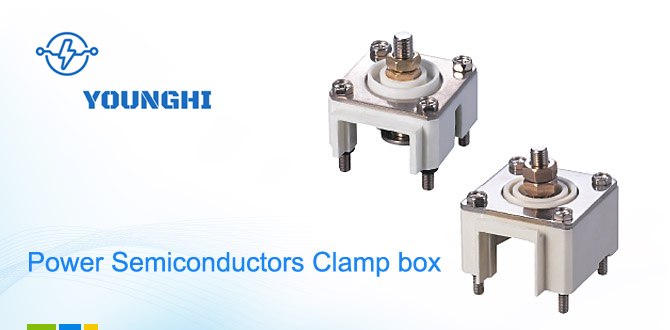

This clamp is a so-called pre-stressed unit. Its main parts are the pressure plate, the spring assembly, the pressure die with nut and washer, and an insulation disk. The spring assembly is pre-stressed as per the type marking and is fixed by the central nut.
Type |
Number of devices |
Outines of devices |
Rth(c-p)(℃W) |
Rth(p-hs)(℃W) |
MP25-200A |
1 |
KT19aT KT25aT |
0.095 |
0.012 |
MP33-500A |
1 |
KT33CT |
0.090 |
0.010 |
